Detailed Guide to Debugging Inclined Tube Settlers

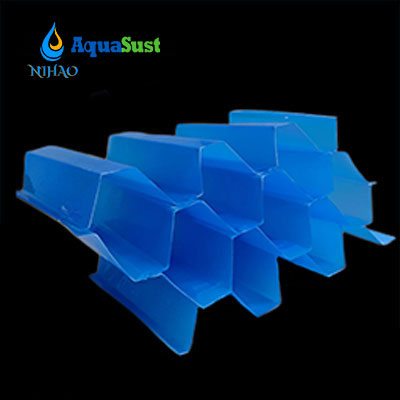

Understanding Inclined Tube Settlers

Inclined tube settlers are essential components in wastewater treatment plants. They work by providing a large surface area for suspended solids to settle out of the wastewater. By understanding how these settlers work, you can more effectively troubleshoot any issues that may arise.

Common Issues and Troubleshooting

Poor effluent quality:

Causes: Clogged tubes, excessive flow rate, ineffective coagulant dosage.

Solutions: Backwash the tubes, adjust flow rate, optimize coagulant dosage.

Slow sludge settling:

Causes: High organic loading, insufficient sludge removal, temperature fluctuations.

Solutions: Increase sludge wasting, adjust temperature control, improve aeration.

Tube damage or displacement:

Causes: Improper installation, corrosion, excessive flow rates.

Solutions: Reinforce tube supports, use corrosion-resistant materials, reduce flow rates.

Debugging Process

Visual Inspection:

Check for any visible signs of damage, such as cracks or broken tubes.

Inspect the inlet and outlet distribution systems for blockages or uneven flow.

Observe the sludge blanket level and its clarity.

Flow Rate Adjustment:

Ensure the flow rate is within the design parameters.

Use flow meters to accurately measure the incoming and outgoing flow.

Adjust valves or pumps to control the flow rate as needed.

Coagulant Dosage Optimization:

Conduct jar tests to determine the optimal coagulant dosage.

Monitor the formation of flocs and their settling characteristics.

Adjust the coagulant dosage based on the test results.

Sludge Removal:

Establish a regular sludge removal schedule.

Monitor the sludge blanket level and remove sludge when necessary.

Ensure the sludge removal system is functioning properly.

Backwashing:

Periodically backwash the tubes to remove accumulated solids.

Develop a backwashing schedule based on the specific operating conditions.

Factors Affecting Settler Performance

Tube material and dimensions

Water quality (turbidity, temperature, pH)

Inlet flow rate

Coagulant type and dosage

Sludge removal frequency

Ambient temperature
